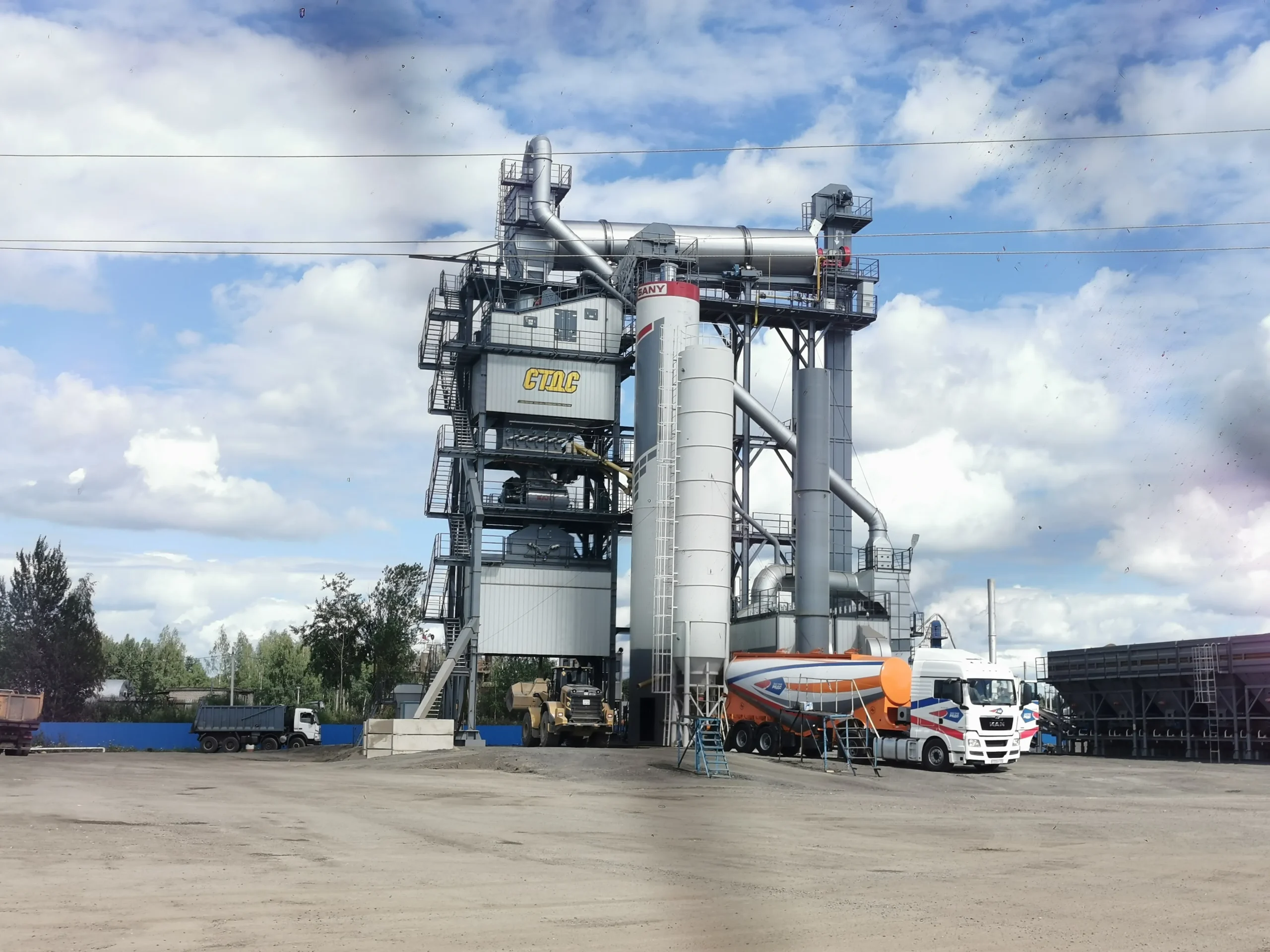

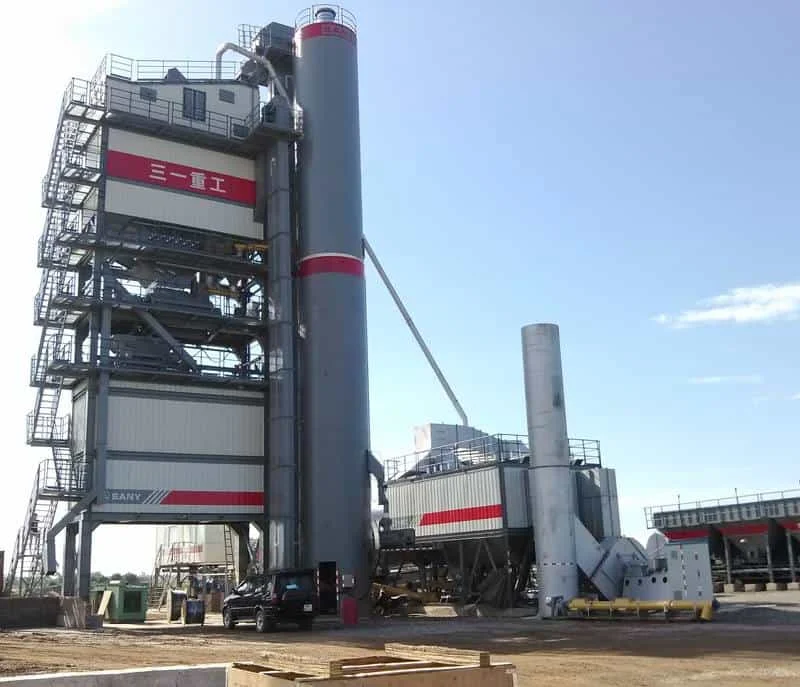

SANY SLB1500D asphalt plant

Environmentally friendly

Exhaust gas concentration ≤20 mg/nm3, Ringelman blackness ≤1 class, ambient noise ≤85 dB (70 dB in the control room).

Accurate measurement

The plant operates by gravity, using control and measurement technology that allows maintaining the accuracy of asphalt concrete mix preparation at ±1.0%. The accuracy of component measurement is also ±1.0%. The double-leaf aggregate measurement system with automatic differential correction ensures process accuracy of ±1.5%. The accuracy of bituminous aggregate measurement is ≤±0.1%.

Energy saving

• Optimized power usage reduces energy consumption.
• The heat transfer coefficient of the drying drum is ≥85%.
• The frequency conversion and constant pressure control technologies used in the burner provide bitumen savings of up to 10% per batch.
• The technology of rapid heating of asphalt concrete allows you to reduce the preparation time for heating by approximately 1 hour.

Efficiency

Design with 15% power reserve. Specially designed mixing body with 10% increased mixing efficiency. Screening efficiency ≥90%.

Safe and reliable

Mechanical protection device is installed on the access door of each key part for greater protection and safety. Double computer redundancy of the control system ensures greater reliability in operation.

Ease of maintenance

Data exchange over the network and remote fault diagnosis system using GPS.
