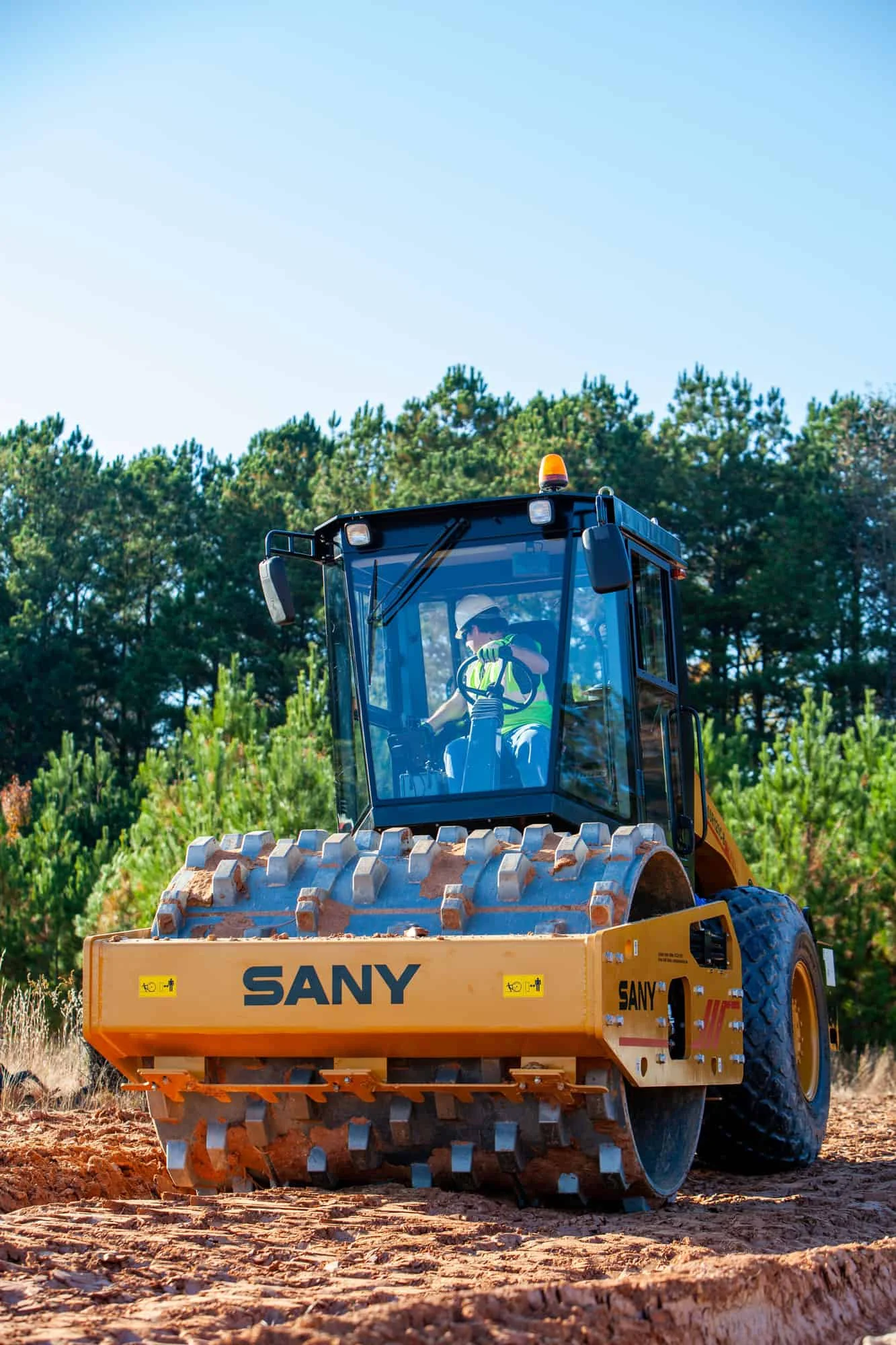

SSR120C-10 soil compactor

technical specifications

Mass
12 tons
Operating weight
12000 kg
Front axle load
7000 kg
Rear axle load
5000 kg
Static linear load on the drum
32.9 kg/cm
Vibration frequency
32/36 Hz
Apmlitude
1.8/0.9 mm
Centrifugal force
280/178 kN
Roller width
2130 mm
Roller diameter
1500 mm
Thickness of the roller edge
25 mm
Occasion
Full
Transport speed
0-12.5 km/h
Working speed
0-7.5 km/h
Turning angle
±35°
Deflection angle
±12°
Turning radius
5800 mm
Transport length
5775 mm
Transport width
2285 mm
Transport height
3225 mm
Model
DF Cummins 4BTAA3.9
Power
93 kW
Torque
?
Emission standard
Tier 2
Engine displacement
?
Fuel tank
250 l

Advantages of this model

High efficiency

The 10% has a higher vibration force than other products in the same category, resulting in a 16.7% increase in productivity.

Extended service life

The use of water wheel type grease on the vibration bearing increases the bearing life to 5,000 hours. The engine air filter is raised and the air is filtered twice to protect the engine. The hydraulic system has three-stage filtration.

Operator comfort

The cabin is mounted on vibration-damping supports. Temperature control in the cabin. Reduced operator effort when driving.

Security features

Rounded bumpers front and rear. Large rear window and sloping hood for better visibility.
