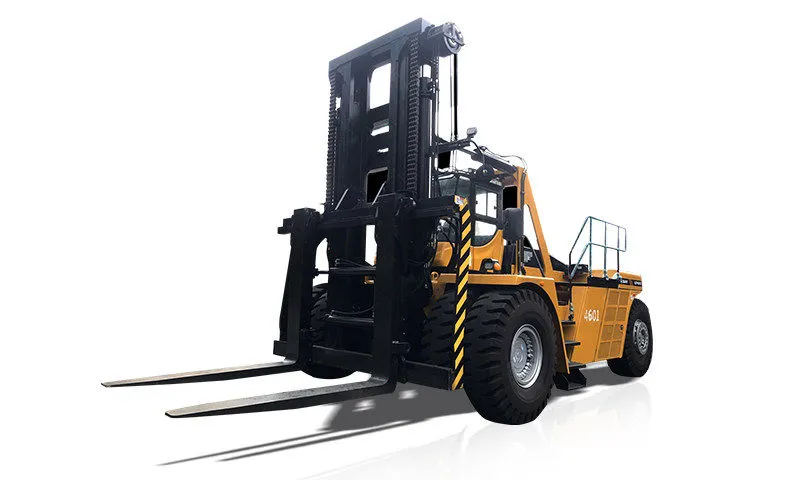

SANY SCP460C forklift

technical specifications

Lifting height
4000 mm
Max. lifting height
4000 mm
Mast height (folded/extended)
4500/6430mm
Load capacity
46t
Total weight
57900 kg
Mast tilt
5/10°
Max. lifting speed (unladen/laden)
250/300mm/s
Max. lowering speed (unladen/laden)
400/400mm/s
Center of gravity
1200 mm
Fork size
2400×300×140 mm
Fork offset
1550-3150mm
Max. travel speed (unladen/laden)
23/25 km/h
Ground clearance
430 mm
Wheelbase
5500mm
Front track width
3033mm
Rear track width
2740mm
Inner turning radius
1110 mm
Outer turning radius
7600 mm
Tires
18.00-25
Transport length
10400mm
Transport width
4300mm
Transport height
4500mm
Model
VOLVO TAD1151
Power
265kW
Type
Diesel
Torque
2100 Nm
Emission standard
Tier 3
Engine displacement
10.8 l

Advantages of this model

Reliable power system

By using world-renowned brand engines such as VOLVO and CUMMINS, which are reliable in quality and powerful in power, combining advanced power matching and control technologies, the equipment is greatly optimized in dynamic performance. Scientifically based and appropriate protection of the engine and transmission will greatly extend their durability.

Quick-change attachment technology

Attachments can be quickly changed to ensure efficient operation in different working conditions.

Effective management technology

The centralized joystick has an inch-step control function. It allows for easy fine-tuning to the millimeter. All attachment movements are proportionally controlled, ensuring a seamless integration of man and machine. The machine also features a multi-action clutch design, allowing it to work faster and more efficiently.

Comfortable working environment

The operator-oriented design includes a wide overview of the working status. Controls are placed in the right position to reduce operator fatigue.

Lightweight construction

Optimizing the design to make it lighter and stronger.
